B75V-Belts

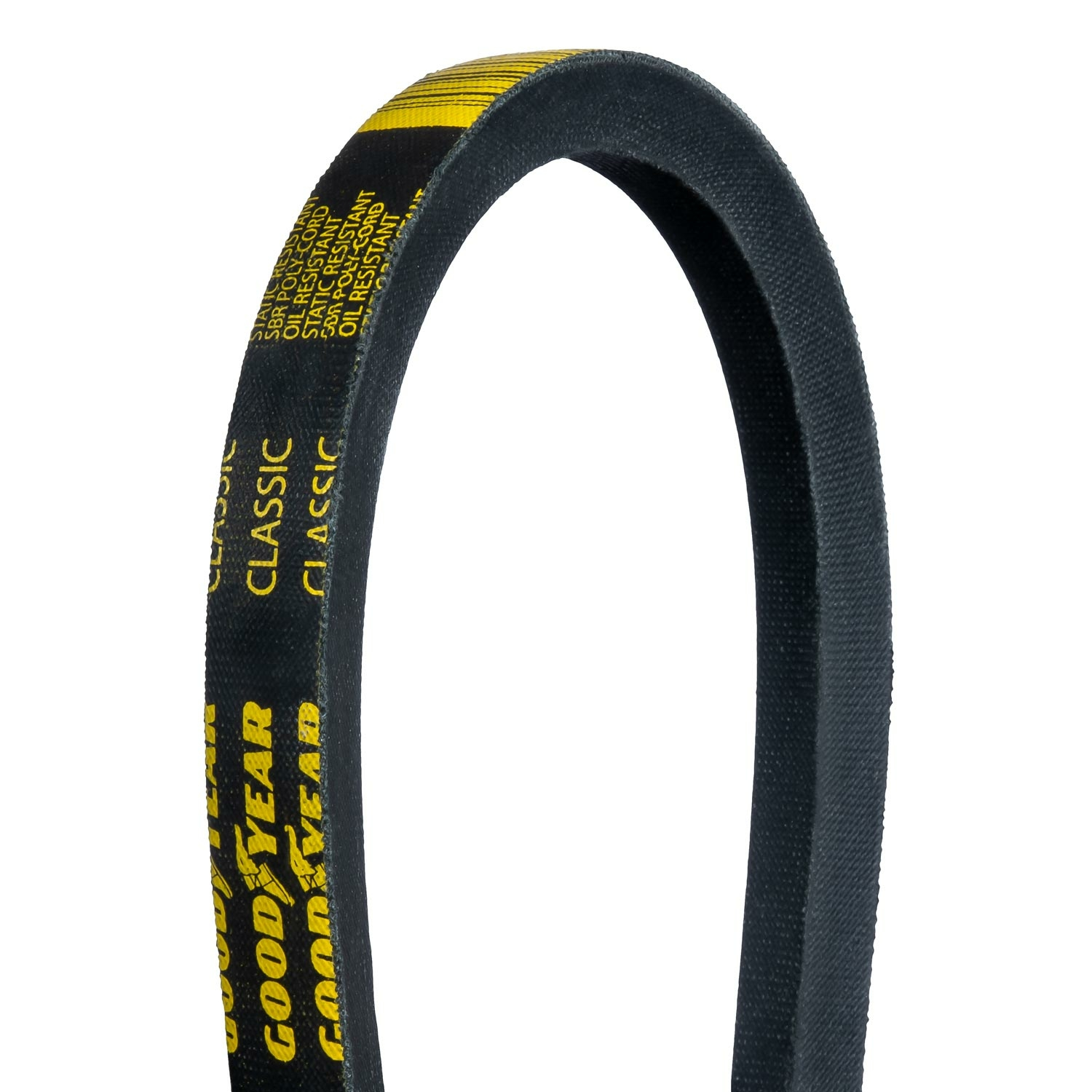

Classic Wrapped V-Belt

B75 Classic Wrapped V-Belt: B Profile,77.72 Effective Length

Experience dependable power transmission with Goodyear Classic Wrapped V-Belts. Engineered with precision and built to last, these belts offer exceptional performance and reliability in a wide range of industrial applications. Made from high-quality materials and wrapped in a protective cover, Goodyear Classic Wrapped V-Belts are built to withstand tough operating conditions and deliver long-lasting performance. Oil and heat resistance ensure reliable performance even in harsh industrial environments, minimizing the risk of belt failure and downtime. Available in various sizes and configurations, these belts are suitable for a wide range of industrial machinery, including conveyors, pumps, and compressors. As a trusted industry leader, Goodyear Classic Wrapped V-Belts meet or exceed industry standards for quality and performance, delivering consistent results you can rely on. Upgrade to Goodyear Classic Wrapped V-Belts today and experience the durability, efficiency, and reliability that come with a trusted brand.

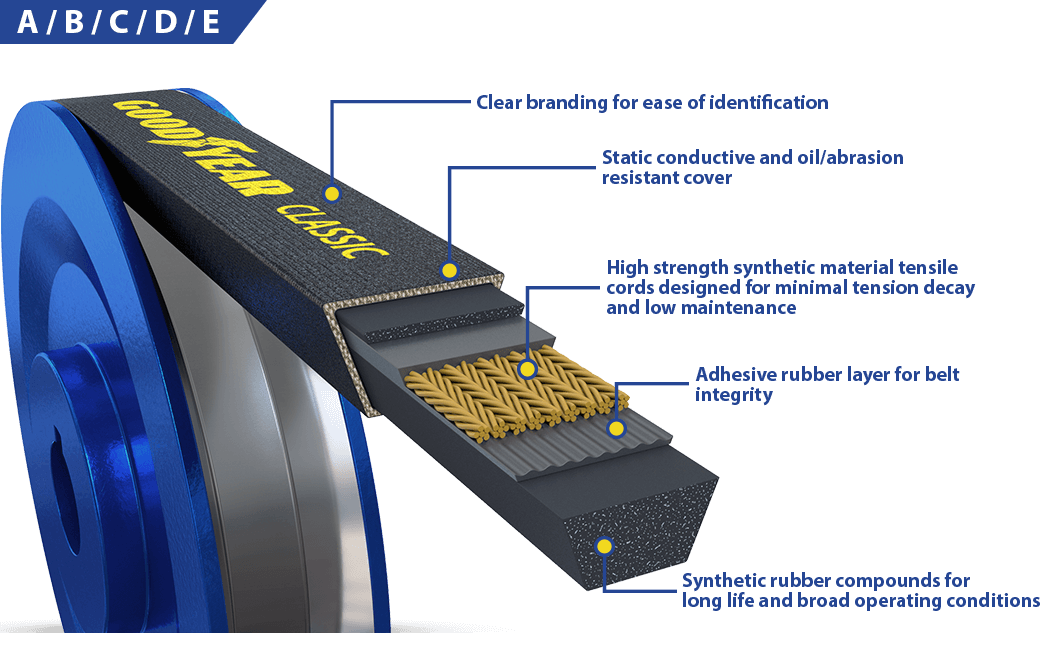

  • Static resistant
  • Oil resistant

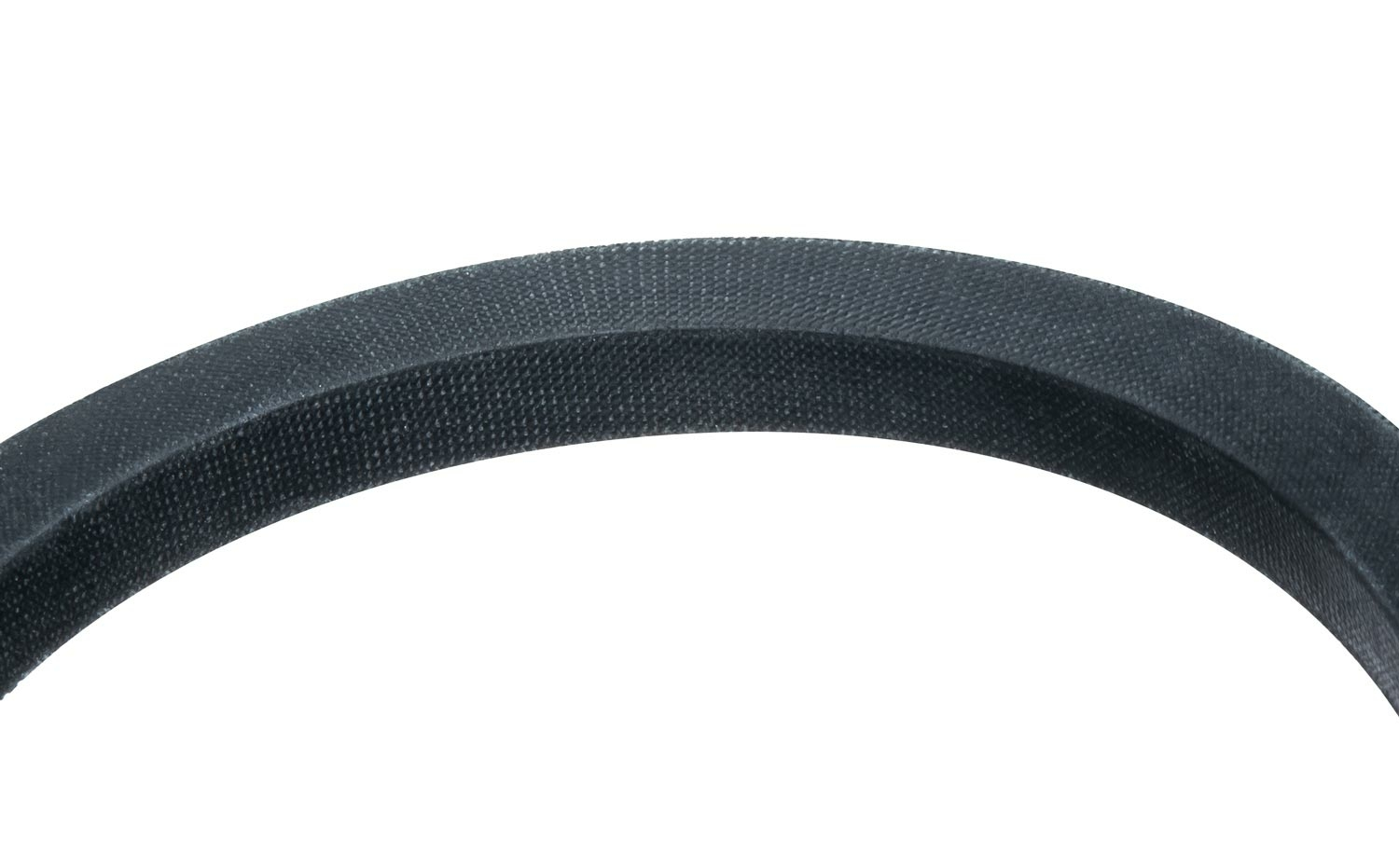

  • Long-life friction resistant cover
  • High strength tensile cords designed for minimal tension decay and low maintenance
  • Engineered to perform consistently across a wide temperature range, making them suitable for diverse operating environments.
Angle: 40 (DD)
Belt Material: Synthetic Rubber (SBR)
Belt Type: Classic Wrapped
Cord Material: Polyester
Cross Section Designation: B
Effective Length (in): 77.72 (in)
Effective Length (mm): 1974 (mm)
Goodyear Alternate P/n: 5L780
Grade Type: OE Performance
Maximum Operating Temperature (ce): 60 (CE)
Maximum Operating Temperature (fa): 140 (FA)
Minimum Operating Temperature (ce): -30 (CE)
Minimum Operating Temperature (fa): -22 (FA)
Outside Circumference (in): 77.87 (in)
Outside Circumference (mm): 1978 (mm)
Rib Quantity: 1
Strand Quantity: 1
Thickness (in): 0.433 (in)
Thickness (mm): 11.00 (mm)
Top Width (in): 0.669 (in)
Top Width (mm): 17 (mm)
Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1116528Allis Chalmers
1147547Allis Chalmers
1183251Allis Chalmers
1508609M1Massey Ferguson
1550001Vermeer
1550001OEM Part Number
22198KInternational Harvester (IHC)
248322Allis Chalmers
3X643Demco
3X643Dayton Parts
4365306Allis Chalmers
4616616Allis Chalmers
553406R1International Harvester (IHC)
5L780Interstate Mufflers Company
5L780Goodyear Alternate P/N
624650New Holland Agriculture
627561New Holland Agriculture
70248322Allis Chalmers
71116528OEM Part Number
71116528Allis Chalmers
71183251OEM Part Number
72371OEM Part Number
857870Hesston
B75OEM Part Number
B75Gates
B75Continental
BP75Carlisle
C457DJohn Deere
CKB75Cartek
IB75AC Delco
J17878John Deere
J17878OEM Part Number
J19497CJohn Deere
L1884CJohn Deere
L777AVermeer
